Plastering Machines
Premium Power Makine Teknoloji Sanayi ve Ticaret A.Ş produce both standard and specially designed machines and spare parts for various industrial sectors. We design and develop cost-effective, optimal solutions in the market according to the requirements of each customer.
Our company works with the biggest machine and spare part dealers worldwide and our quality is comparable to the biggest manufacturers in the market. We offer cost effective solutions and reasonable prices.
TOP QUALITY SPARE PARTS & EUROPEAN STANDARDS
We work top quality spare parts suppliers such as NORD DRIVE SYSTEMS, YILMAZ MOTOR, KOELLMANN, METZGER, PENTAX, TIVAL, CONDOR, HONEYWELL, TORK, KARASTO, EATON, SIEMENS AND MORE... We have more than 10 year experience in the sector and all our services and production facilities are carried out by our fully trained and well-motivated professional staff in order to ensure high quality of European standards.
TOP QUALITY & LONG LASTING POWDER COATING PAINT

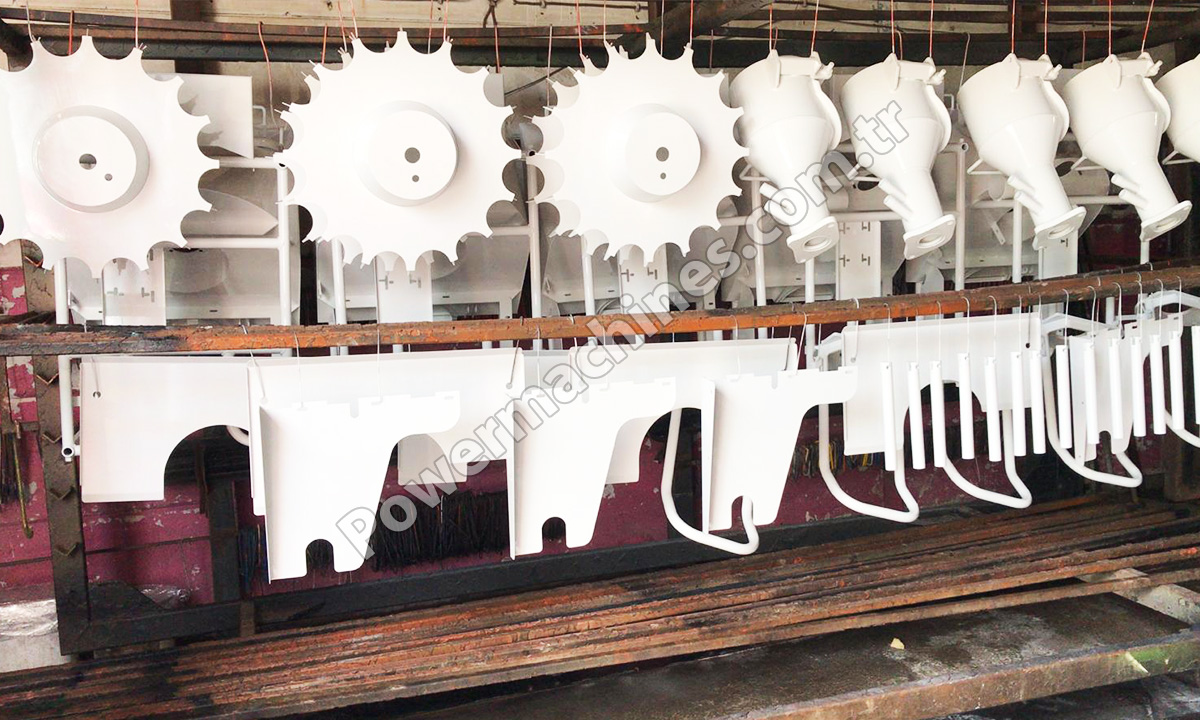

We apply powder coating paint on metal frame of plastering machines and spare parts. Our in house, industrial powder coating ovens maintain homogeneous air distribution inside heating-curing chamber to achieve highest efficiency and obtain perfect shiny finish. Our powder coating ovens are CE certificated and conforms to the European Standards.
PLASTERING MACHINE MODELS
MODELS |
ECO |
ALPHA |
EURO |
MONO |
MT |
| Dimensions | 950/750/1420mm | 125/75/162cm | 125/75/162cm | 125/75/162cm | 125/75/162cm |
| Power Supply |
230V, 50Hz | 400V, 50Hz | 400V, 50Hz | 230V, 50Hz | 230V/400V, 50Hz |
| Top Motor |
2.3 kW (YILMAZ) | 5,5 kW (YILMAZ) | 6.05 kW (NORD) | 4.3kW(YILMAZ) | 5.5 kW (YILMAZ) |
| Top Motor Speed |
368 rpm | 406 rpm | 384 rpm | 357 rpm | 406 rpm |
| Wheel Motor | --- | 0.55 kW, 28 rpm | 0.55 kW, 28 rpm | 0.55 kW, 28 rpm | 0.55 kW, 28 rpm |
| Air Compressor | 128lt/min-3.5bar | 250 lt/min-5.5 bar | 250 lt/min-5.5 bar | 250 lt/min-5.5 bar | 250lt/min-5.5 bar |
| Water Pump |
0.37 kW/0.5hp | 0.37kW/1.0hp | 0.37 kW/0.5hp | 0.37 kW/0.5hp | 0.37 kW/0.5hp |
| Hopper Volume |
70lt | 130lt | 130lt | 130lt | 130lt |
| Max.Grain Size |
0-2mm | 0-3mm | 0-3mm | 0-3mm | 0-3mm |
| Flow Rate* |
Max. 20lt/min | Max. 40lt/min | Max. 40lt/min | Max.20lt/min | Max. 40lt/min |
| Hor. Pumping Distance* |
Max. 30m | Max. 40m | Max. 40m | Max. 30m | Max. 40m |
| Max. Weight |
136kg | 285kg | 285kg | 285kg | 285kg |
| Machine Equipment |
Included | Included | Included | Included | Included |
* Those variables are not standard, depending on the characteristics of materials, the type of mixer motor, air compressor and rotor & stator can be changed.
